Computational Military Reasoning (Tactical Artificial Intelligence) Part 3

In my two previous blog posts on the subject of battlefield analysis (computational military reasoning and tactical artificial intelligence) I discussed how the TIGER1)Tactical Inference Generator / MATE2)Machine Analysis of Tactical Environments program can identify certain key tactical positions such as anchored / unanchored flanks and restricted / unrestricted avenues of approach (attack) and retreat. In this blog post we will look at how TIGER / MATE performs analysis of frontages and implements the infiltration and penetration maneuvers.

MATE / TIGER employs a number of ‘building block’ algorithms that are used in various tactical and battlefield analysis algorithms. One set of building block algorithms are the Grouping algorithms that determine weaknesses in frontages. The following slides are from an unclassified briefing that I gave to DARPA (the Defense Advanced Research Project Agency) on my MATE program (funded by DARPA research grant W911NF-11-200024):

All slides can be enlarged by clicking on them. Note: OPFOR = Opposition Forces. In all of these slides OPFOR are the red units.

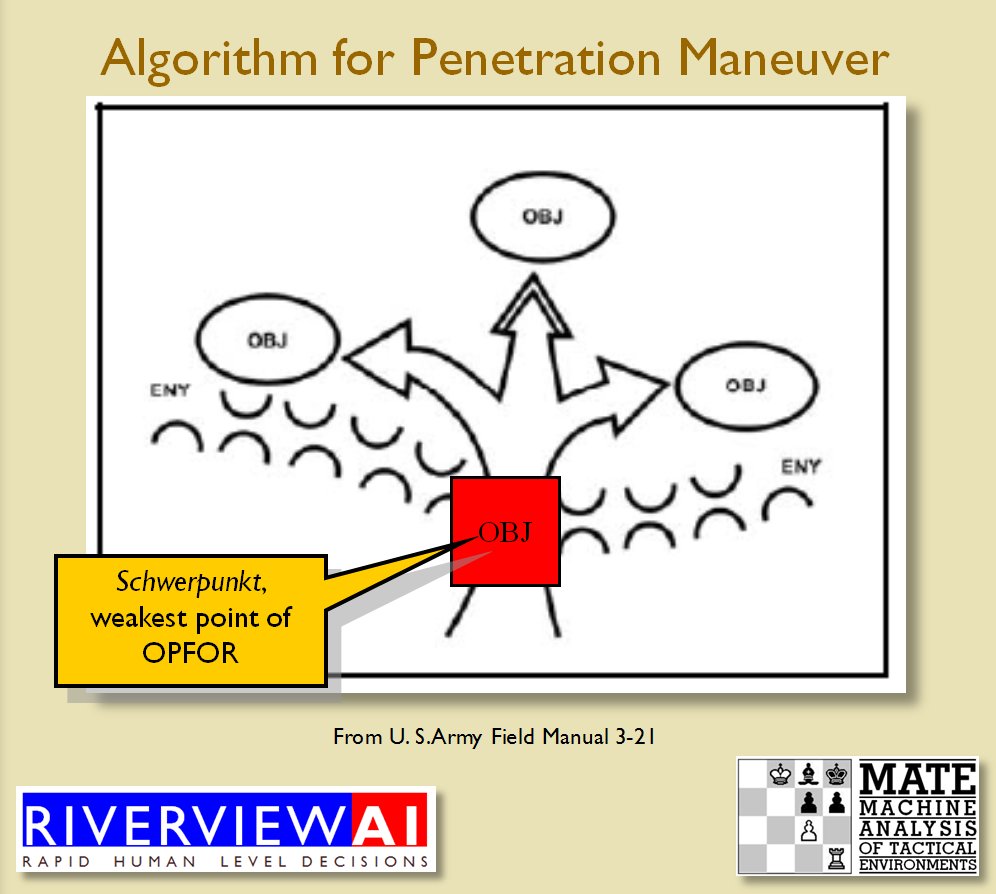

With the above building block algorithms we can calculate the optimum part of OPFOR’s frontage to set as the Schwerpunkt. Schwerpunkt is a German word meaning, “the point of maximum effort.” The term was used in blitzkrieg planning to specify, “the center of gravity, point of main effort, where a decisive result was to be achieved.”

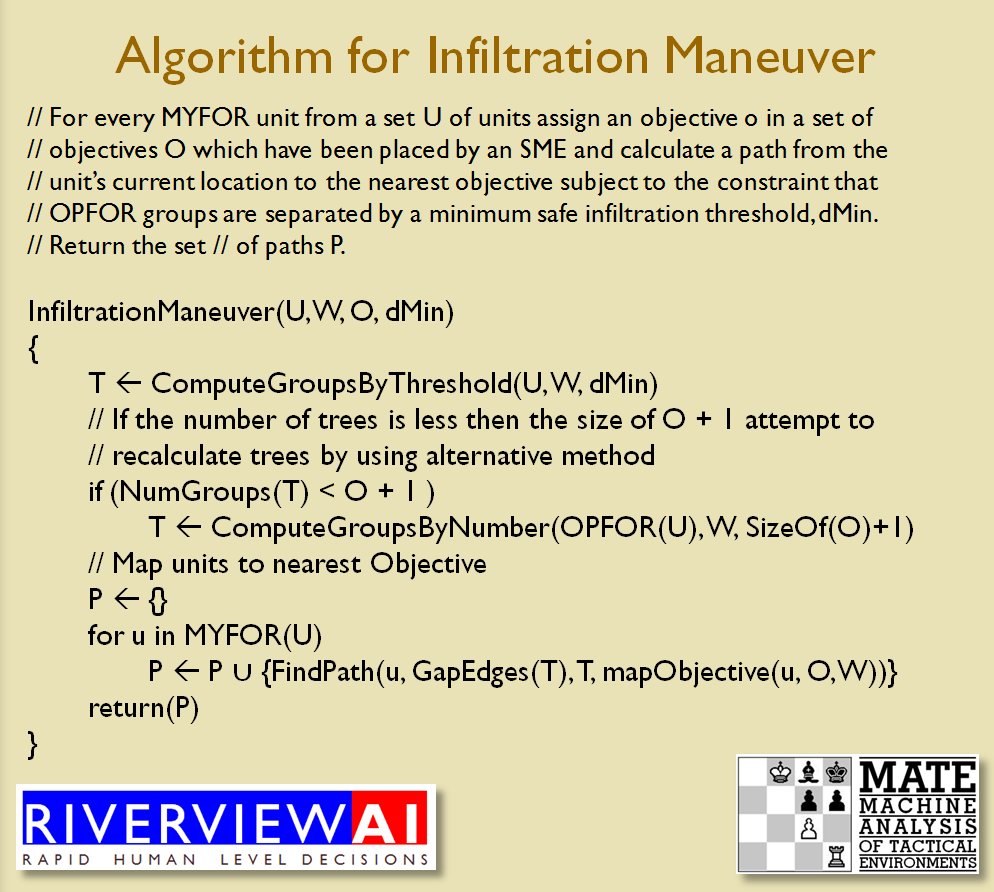

Using the above algorithms we can now calculate the Schwerpunkt for implementing the penetration and infiltration maneuvers. The following slides are from an unclassified briefing that I gave to DARPA (the Defense Advanced Research Project Agency) on my MATE program (funded by DARPA research grant W911NF-11-200024): All slides can be enlarged by clicking on them.

The Five Canonical Offensive Maneuvers are from the U. S. Army Field Manual 3-21 which is available online. As always, if you have any questions please feel free to email me.

References

References
1 Tactical Inference Generator
2 Machine Analysis of Tactical Environments

Computational Military Reasoning (Tactical Artificial Intelligence) Part 2

In my last blog post I described how the TIGER / MATE programs classified battles (in computer science terms ‘objects’) based on attributes and that anchored or unanchored flanks was one such attribute. After demonstrating the algorithm for calculating the presence or absence of anchored flanks we saw how the envelopment and turning tactical maneuvers were implemented. In this blog post we will look at another attribute: restricted avenues of attack and restricted avenues of retreat.

The only avenue of retreat from the Battle of First Bull Run back to Washington was over a narrow Stone Bridge. When a wagon overturned panic ensued. Library of Congress.

One classic example of a restricted avenue of retreat was the narrow stone bridge crossing Cub Run Creek which was the only eastern exit from the First Bull Run battlefield. The entire Union army would have to pass over this bridge as it fell back on Washington, D.C. When artillery fire caused a wagon to overturn and block the bridge, panic ensued.

At the battle of Antietam Burnside tried to force his entire corps over a narrow bridge to attack a Confederate position on the hill directly above. The bridge was famously carried by the 51st New York Infantry and 51st Pennsylvania Infantry who demanded restoration of their whiskey rations in return for this daring charge. From the original Edwin Forbes drawing. Click to enlarge.

Burnside’s Bridge at the battle of Antietam is a famous example of a restricted avenue of attack. Burnside was unaware that Snavely Ford was only 1.4 miles south of the stone bridge and allowed a back door into the Confederate position. Consequently, he continued to throw his corps across the bridge with disastrous results.

How to determine if there is a restricted line of attack or a restricted line of retreat on a battlefield

From the perspective of computer science restricted avenues of retreat and restricted avenues of attack are basically the same problem and can be solved with a similar algorithm.

As before we must first establish that there is agreement among Subject Matter Experts (SMEs) of the existence of – and the ability to quantify – the attributes of ‘Avenue of Attack’, ‘Avenue of Retreat’ and ‘Choke Point’.

The following slides are from an unclassified briefing that I gave to DARPA (the Defense Advanced Research Project Agency) on my MATE program (funded by DARPA research grant W911NF-11-200024):

All slides can be enlarged by clicking on them.

Now that we have determined if there is a restricted avenue of attack the next blog post will discuss what to do with this information; specifically the implementation of the infiltration and penetration offensive maneuvers.

As always, if you have any questions please feel free to email me.

References:

TIGER: An Unsupervised Machine Learning Tactical Inference Generator, Sidran, D. E. Download here.

Computational Military Reasoning (Tactical Artificial Intelligence) Part 1

I coined the phrase ‘computational military reasoning’ in grad school to explain what my doctoral thesis in computer science was about. ‘Computational reasoning’ is a formal method for solving problems (technically, you don’t even need a computer). But, for our purposes it means a computer solving ‘human-level’ problems. A classic example of this would be calculating the fastest route on a map between two points. In computer science we call this a ‘least weighted path’ algorithm and I did my Q (Qualifying) Exam on this subject. I have also written extensively on the subject including these blog posts.

So, ‘computational military reasoning’ is a, “computer solving human-level military problems.” Furthermore, we can divide computational military reasoning into two subcategories: strategic and tactical (Russian military dogma also adds a third category, ‘grand strategy’); however, for now, let’s concentrate on tactical artificial intelligence; or battlefield decisions.

Tactical AI is divided into two parts: analyzing – or reading – the battlefield and acting on that information by creating a set coherent orders (commonly known as a COA or Course of Action) that exploit the weaknesses in our enemy’s position that we have found during our battlefield analysis.



It is said that as Napoleon traveled across Europe with his staff he would question them about the terrain that they were passing; “Where is the best defensive position? What are the best attack routes?” Where would you position artillery? What ground is favorable for cavalry attack?”

We take it for granted that such analysis of terrain and opposing forces positioned upon it is a skill that can be taught to humans. My doctoral research 1)TIGER: An Unsupervised Machine Learning Tactical Inference Generator; This thesis can be downloaded free of charge here. successfully demonstrated the hypothesis that an unsupervised machine learning program could also learn this skill and perform battlefield analysis that was statistically indistinguishable2)Using a one sided Wald test resulted in  p = 0.0001.In other words, it was extremely unlikely that TIGER was ‘guessing correctly’. from analyses performed by Subject Matter Experts (SMEs) such as instructors at West Point and active duty combat command officers.

Supervised & Unsupervised Machine Learning

Netflix recommendations are a supervised learning program. Every time you ‘like’ a movie the program ‘learns’ that you like ‘documentaries’; for example. Any program that has you ‘like’ or ‘dislike’ offerings is a supervised learning program. You are the supervisor and by clicking on ‘like’ or ‘dislike’ you are teaching the program.

TIGER is an unsupervised machine learning program. That means it has to figure everything out for itself. Rather than being taught, TIGER is ‘fed’ a series of ‘objects’ that have ‘attributes’ and it sorts them into like categories. For TIGER the objects are snapshots of battlefields.

Screen capture from TIGER. An ‘object’ has been loaded into TIGER for analysis; in this case a ‘snapshot’ of the battle of Antietam at 1630 hours on September 17, 1863. Click to enlarge.

How TIGER perceives the battlefield

When you and I look at a battlefield our brains, somehow, make sense of all the NATO 2525B icons scattered around the topographical map. I don’t know how our brains do it, but this is how TIGER does it:

Screen capture from TIGER: How TIGER converts unit positions into lines and frontages using a Minimum Spanning Tree (MST). Click to enlarge.

By combining 3D Line of Sight with Range of Influence (how far weapons can fire and how accurate they are at greater distances displayed, above, with lighter colors) with a Minimum Spanning Tree algorithm3)Kruskal’s algorithm, https://en.wikipedia.org/wiki/Kruskal%27s_algorithm the above image is how TIGER ‘sees’ the battlefield of Antietam. This is an important first step for evaluating object attributes.

How to determine the attribute of anchored or unanchored flanks

Battlefields are ‘objects’ that are made up of ‘attributes’. One of these attributes is the concept of anchored and unanchored flanks. While anyone who plays wargames probably has a good idea what is meant by a ‘flank’, following formal scientific methods I had to first prove that there was agreement among Subject Matter Experts (SMEs) on the subject. This is from one of the double-blind surveys given to SMEs:

Screen shot from online double-blind survey of Subject Matter Experts on identifying the presence of Anchored and Unanchored Flanks. Click to enlarge.

And their responses to the situation at Antietam:

Subject Matter Experts response to the question of the presence of Anchored or Unanchored flanks at Antietam. Click to enlarge.

And another double-blind survey question asked of the SMEs about anchored or unanchored flanks at Chancellorsville:

Response to double-blind survey question asked of SMEs about anchored and unanchored flanks at Chancellorsville. Click to enlarge.

So, we have now proven that there is agreement among Subject Matter Experts about the concept of ‘anchored’ and ‘unanchored’ flanks and, furthermore, some battlefields exhibit this attribute and others don’t.

Following is a series of slides from a debriefing presentation that I gave to DARPA (Defense Advanced Research Projects Agency) as part of my DARPA funded research grant (W911NF-11-200024) describing the algorithm that MATE (the successor to TIGER) uses to calculate if a flank is anchored or unanchored and how to tactically exploit this situation with a flanking maneuver. This briefing is not classified. Click to enlarge slides.

How to generate a Course of Action for a flank attack

Once TIGER / MATE has detected an ‘open’ or unanchored flank it will then plot a Course of Action (COA) to maneuver its forces to perform either a Turning Maneuver or an Envelopment Maneuver. Returning to the previous DARPA debriefing presentation (Click to enlarge):

MATE analysis of the battle of Marjah (Operation Moshtarak February 13, 2010)

The following two screen captures are part of MATE’s analysis of the battle of Marjah suggesting an alternative COA  (envelopment maneuver) to the direct frontal assault that the U. S. Marine force actually performed at Marjah. Click to enlarge:

Conclusions & Comments about Computational Military Reasoning (Tactical Artificial Intelligence) & Battlefield Analysis (Part 1)

Usually, at this point when I give this lecture, I look out to my audience and ask for questions. I really don’t want to lose anybody and we’ve got a lot more Tactical AI to talk about. So far, I’ve only covered how my programs (TIGER / MATE) analyze a battlefield in one particular way (does my enemy – OPFOR in military terms – have an exposed flank that I can pounce on?) and there is a lot more battlefield analysis to be performed.

It’s easy, as a computer scientist, to use computer science terminology and shorthand for explaining algorithms. But, I worry that the non computer scientists in the audience will not quite get what I’m saying.

Do you have any questions about this? If so, I would really like to hear from you. I’ve been working on this research for my entire professional career (see A Wargame 55 Years in the Making) and, frankly, I really like talking about it. As a TA said to me many years ago when I was an undergrad, “There are no stupid questions in computer science.” So, please feel free to write to me either using our built in form or by emailing me at Ezra [at] RiverviewAI.com

References

References
1 TIGER: An Unsupervised Machine Learning Tactical Inference Generator; This thesis can be downloaded free of charge here.
2 Using a one sided Wald test resulted in  p = 0.0001.In other words, it was extremely unlikely that TIGER was ‘guessing correctly’.
3 Kruskal’s algorithm, https://en.wikipedia.org/wiki/Kruskal%27s_algorithm
